LX-5

 Nakamichi LX-5

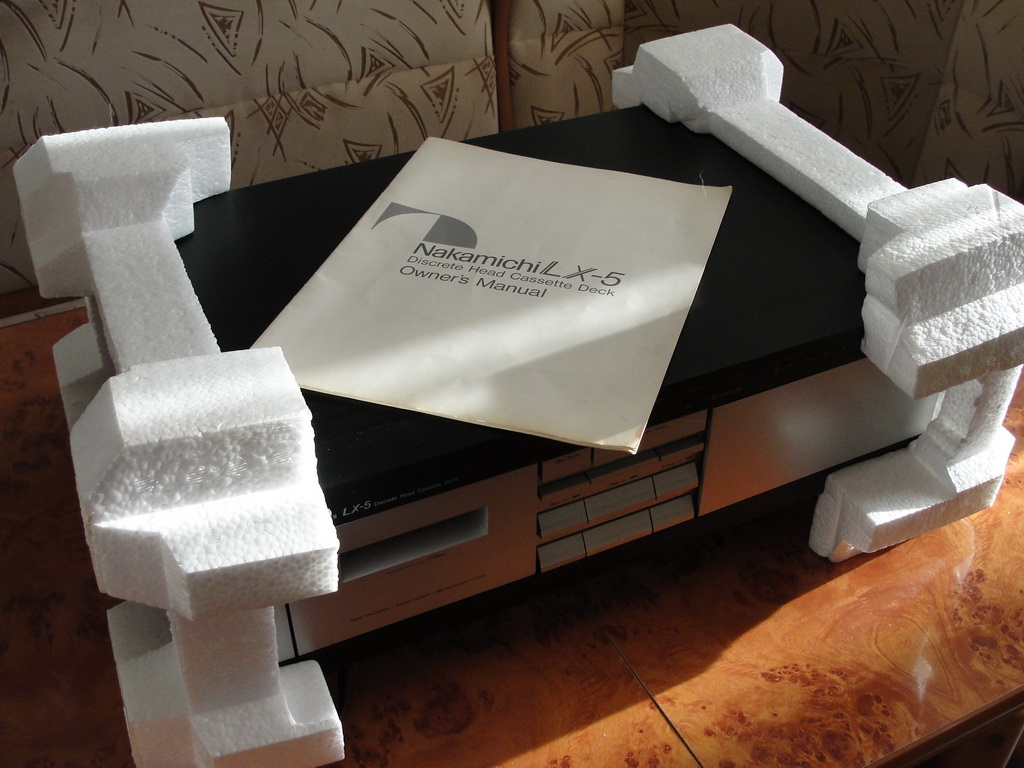

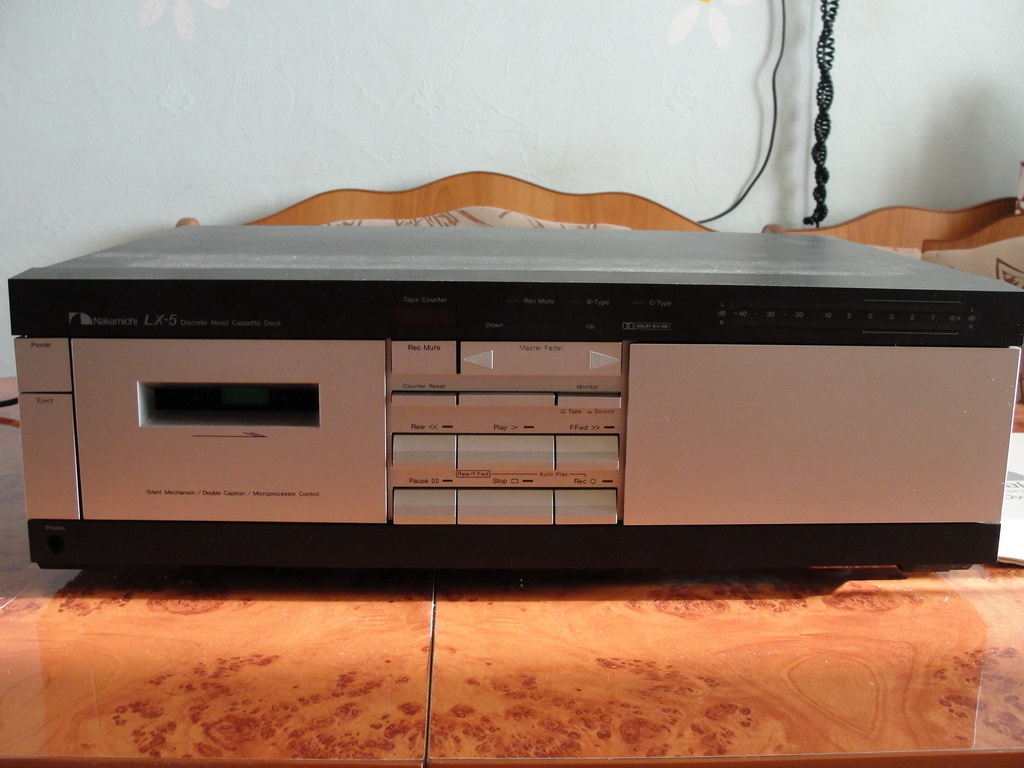

Nakamichi_LX5_2   Nakamichi_LX5_1 Photos by Vladimir Mochalov


Service Manual

 LX-5 Service Manual


User Manual

 LX-5 User Manual



Release year 1981-1984     Average price  849$

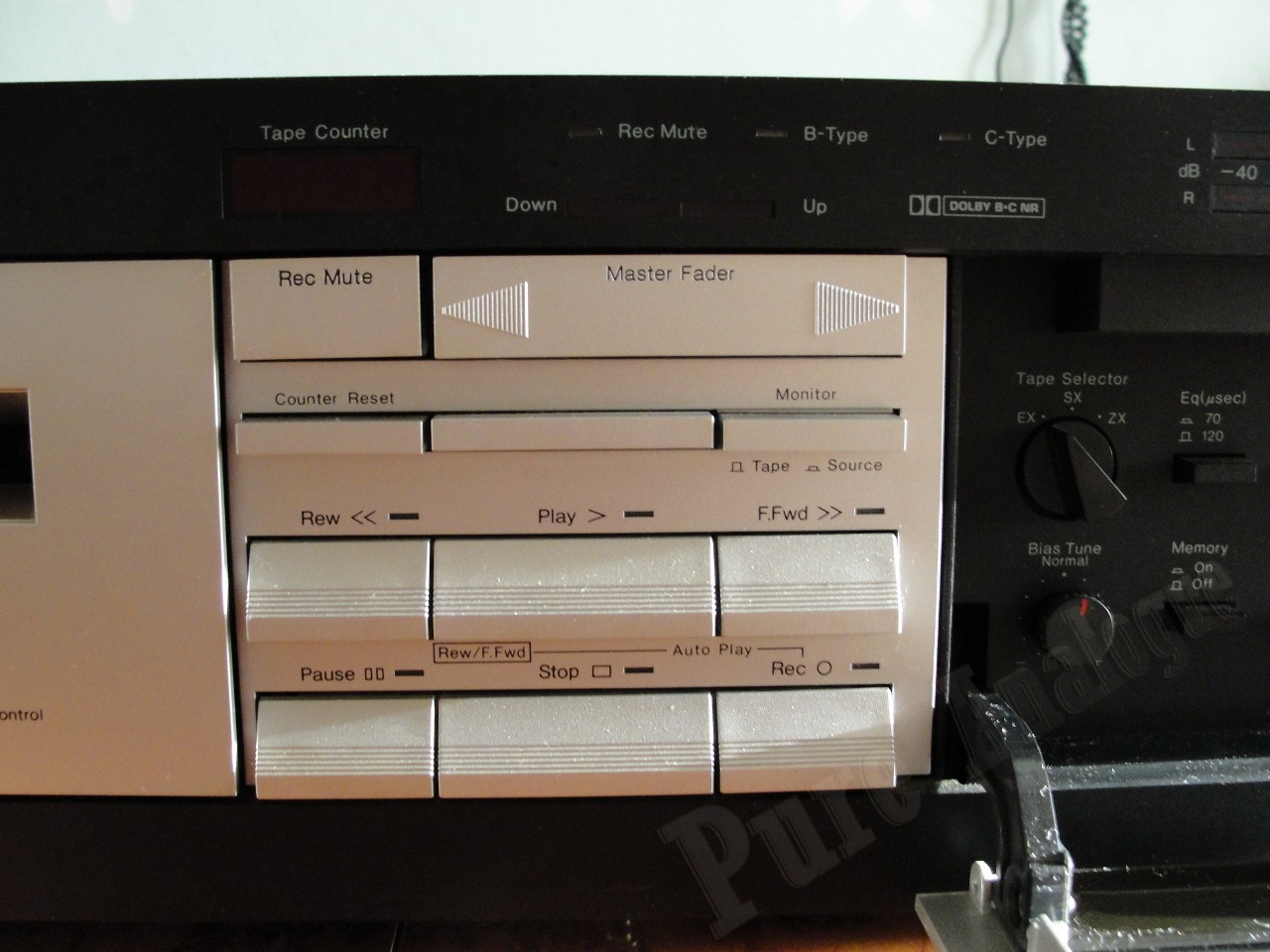

Display Head Configuration      Nakamichi_LX-5_3
Digit Digital Counter √ 2 Head Design
Digital Peak-Reading Meters √ 3 Head Design  √
Mechanical Counter     Seperate Record and Playback Heads  √
Analog Needle Meters     4 Track / 2 Channel √
Linear Tape Counter
    Tape
Connectivity Chrome Tape Capability √
Headphones √ Normal Tape Capability √


RCA Input/Output √ Metal Tape Capability √
Wired Remote Control √ Auto Tape Type Selection
Amp out Manual Tape Type Selection √

Noise Reduction Calibration
Dolby-B Noise Reduction √ 15kHz Test Tone
Dolby-C Noise Reduction √ 400Hz Test Tone
Dolby-S Noise Reduction Auto Playback Azimuth Correction
DBX Noise Reduction Manual Bias Calibration √

Double Dolby NR Circuits √ Manual Level Calibration √
MPX Filter √ Auto Bias Calibration
Subsonic Filter √ Auto Level Calibration
Dolby HX Pro


      Indicators
Transport     Record Indicator √
Pressure Pad Lifter √    Illuminated Cassette Compartment √
Single-Capstan Transport
  Chrome Tape
Auto Reverse



   Metal Tape
Belt Drive (Capstan) √   Normal Tape
Slack-Tape Takeup

√

   Fader Down
2-Speed Cueing     Fader Up
Mechanical Tape Loading √

Dual-Capstan Transport

√

   Speed
Auto Shutoff √   4.76 cm/s √
Double Direct Drive (Capstan)     9.52 cm/s
Idler Drive (Reel) √
Multi Motor Mechanism √
Belt Drive (Azimuth Adjustment)
Belt Drive (Mechanism)
