700II

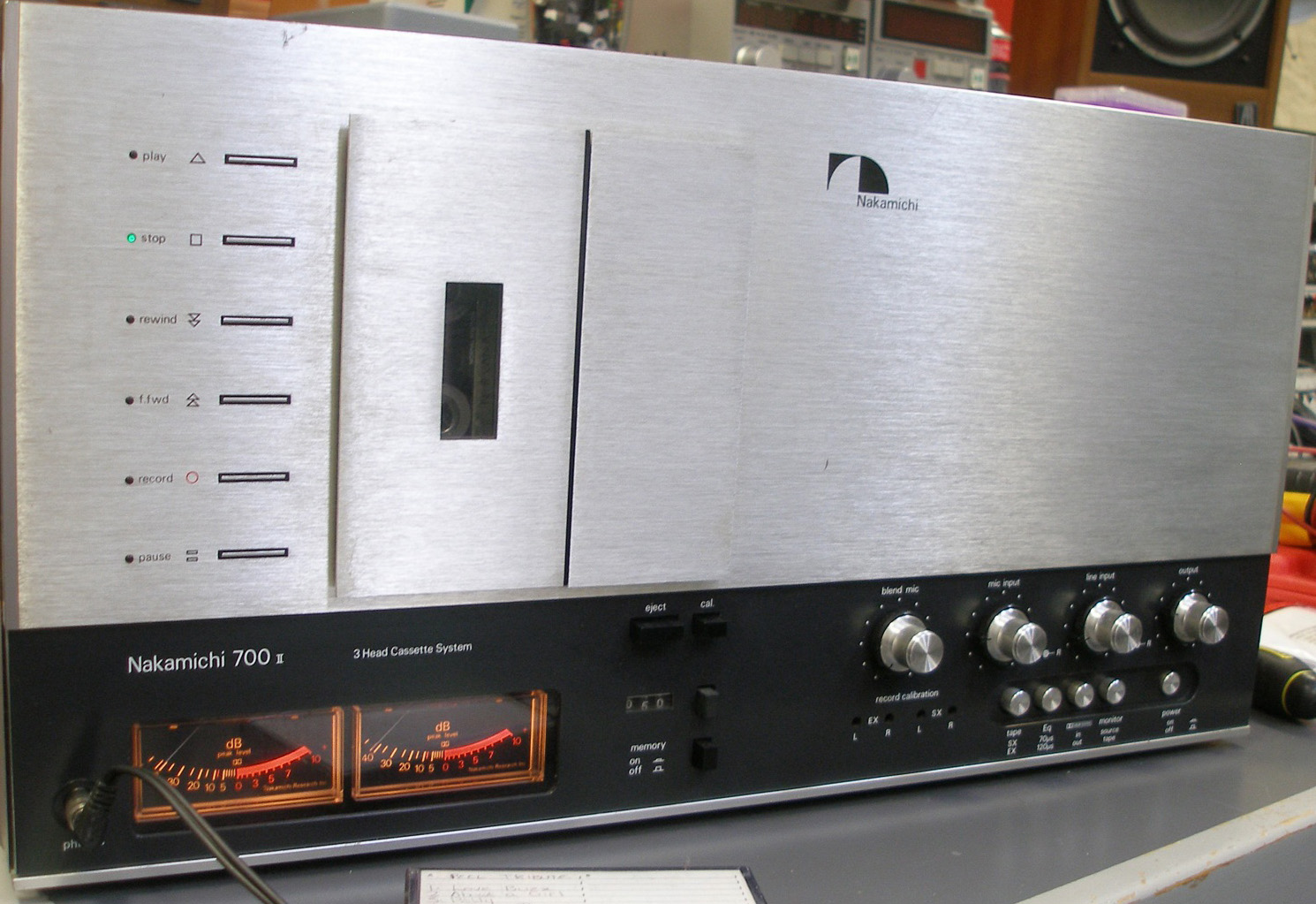

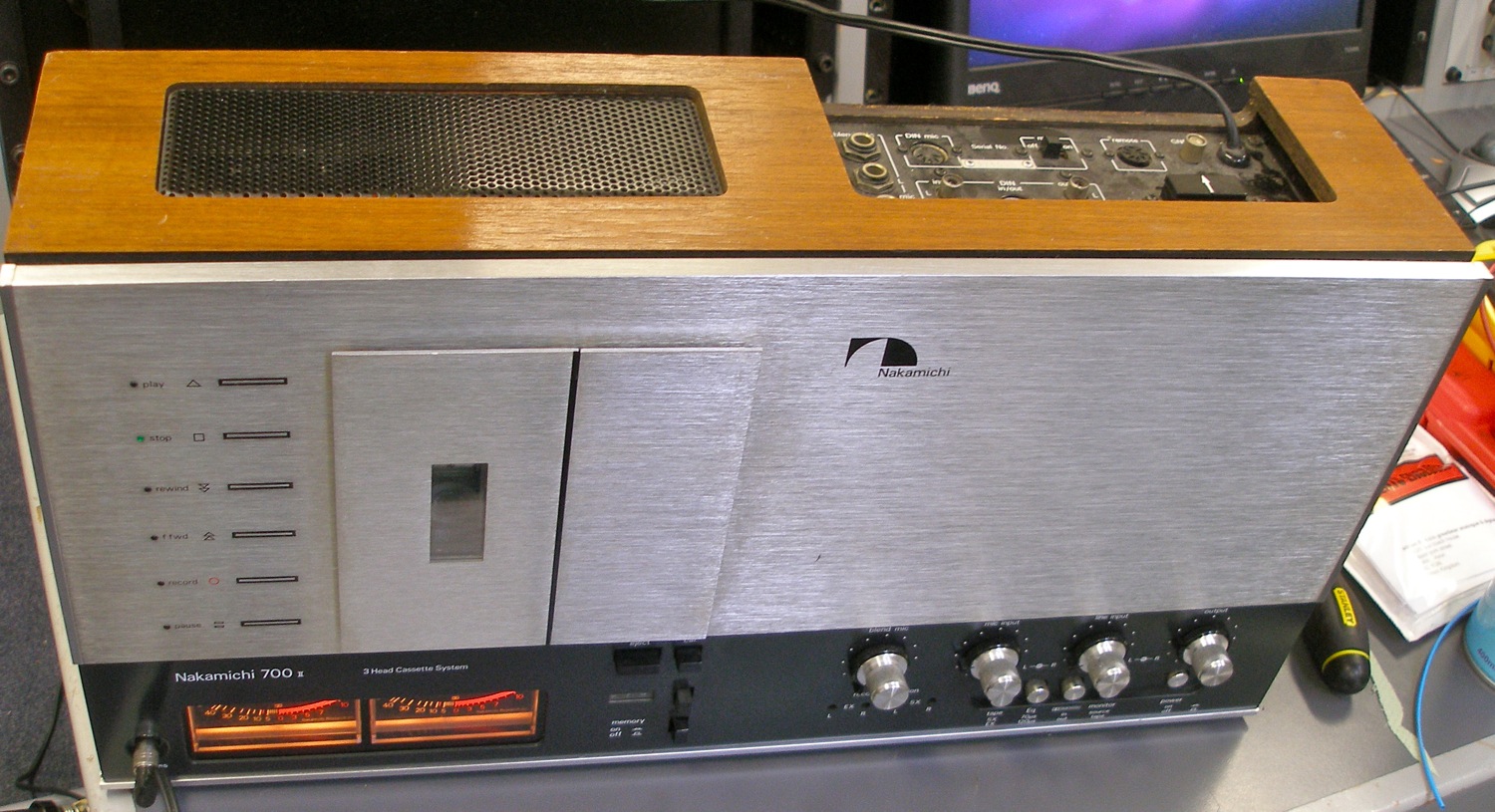

| Nakamichi 700II | |||||||||
 |
|
Service Manual | |||||||
| User Manual | |||||||||
| Catalogue | |||||||||
|
|
|
||||||||
| Release year | 1977-1980 | Average price | 1140$ | ||||||
| Display | Head Configuration |
|
|||||||
| Digit Mechanicall Counter | √ | 2 Head Design | |||||||
| Digital Peak-Reading Meters | 3 Head Design | √ | |||||||
| Peak Hold | Seperate Record and Playback Heads | ||||||||

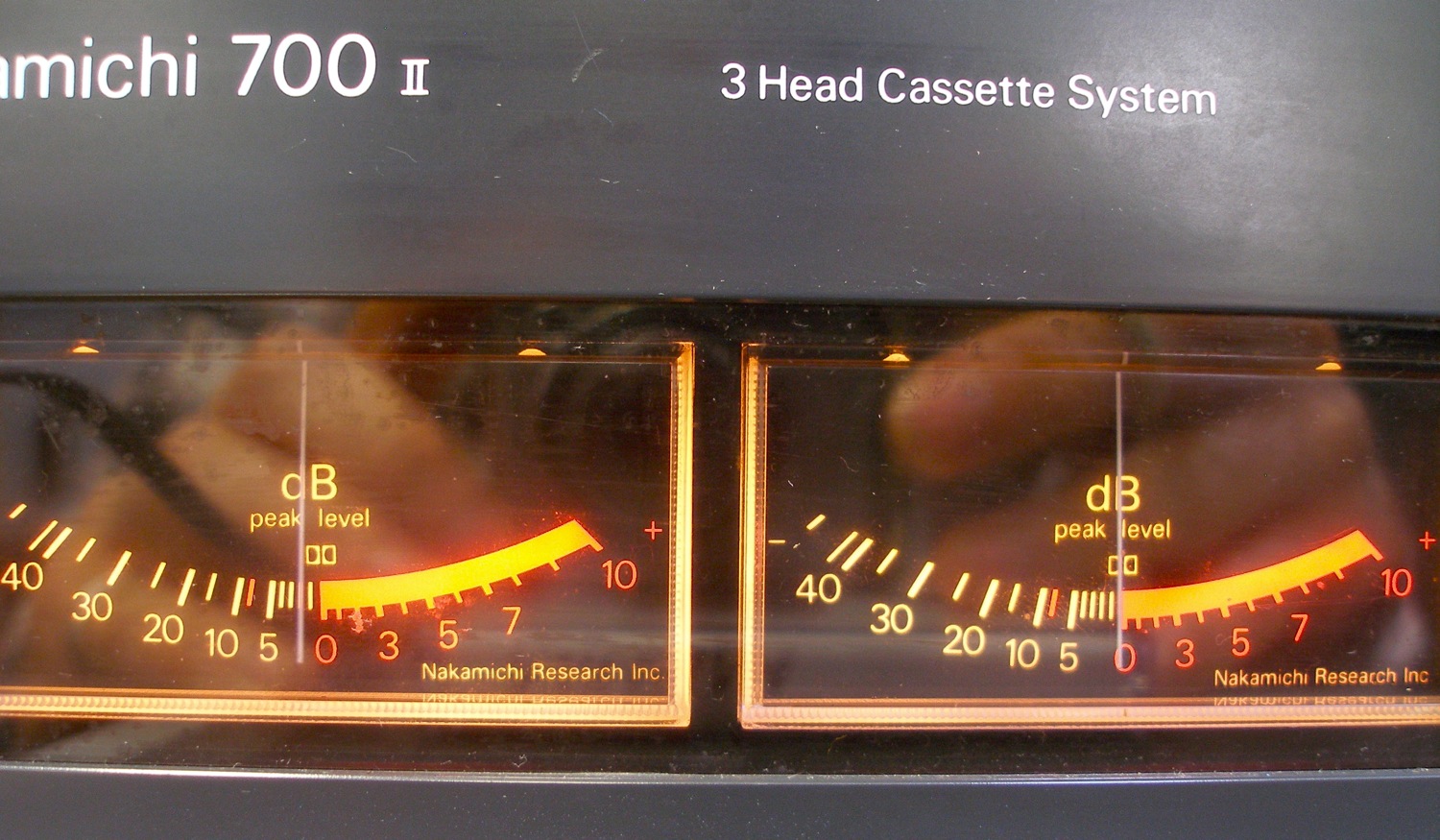

| Analog Needle Meters | √ | 4 Track / 2 Channel |
|
||||||
| Track Indicator | |||||||||
| Tape | |||||||||
| Connectivity | Chrome Tape Capability | √ | |||||||
| Headphones | √ | Normal Tape Capability | √ | ||||||
| RCA Input/Output | √ | Metal Tape Capability | √ | ||||||
| Wired Remote Control | √ | Auto Tape Type Selection | |||||||
| Microphone Input | √ | Manual Tape Type Selection | √ | ||||||
| Noise Reduction | Calibration | ||||||||
| Dolby-B Noise Reduction | √ | 15kHz Test Tone | |||||||
| External Noise Reduction | 400Hz Test Tone | √ | |||||||

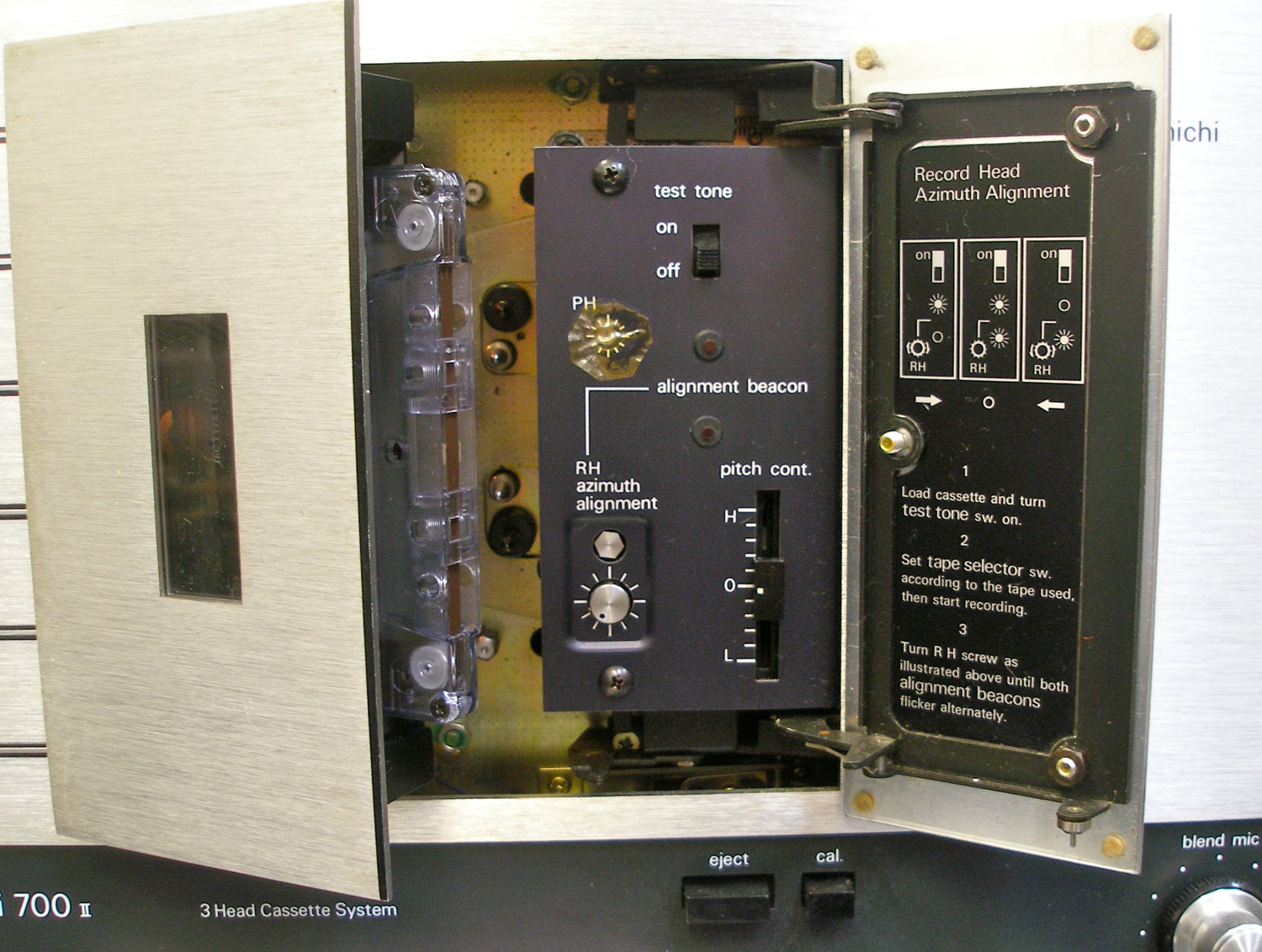

| Dolby-S Noise Reduction | Manual Playback Azimuth Correction | √ | |||||||
| DBX Noise Reduction | Manual Bias Calibration | ||||||||
| Double Dolby NR Circuits |
|
Manual Level Calibration | √ | ||||||
| MPX Filter | √ | Auto Bias Calibration | |||||||
| Subsonic Filter | Auto Level Calibration | ||||||||
| Dolby HX Pro | |||||||||
| Indicators | |||||||||
| Transport | Record Indicator | ||||||||
| Pressure Pad Lifter | Illuminated Cassette Compartment | ||||||||
| Dual-Capstan Transport | √ | Chrome Tape | |||||||
| Auto Reverse | Metal Tape | ||||||||
| Belt Drive (Capstan) | √ | Normal Tape | |||||||
| Slack-Tape Takeup | Fader Down | ||||||||
| 2-Speed Cueing | Fader Up | ||||||||
| Mechanical Tape Loading | √ | ||||||||
| Speed | |||||||||
| Auto Shutoff | √ | 4.76 cm/s | √ | ||||||
| Double Direct Drive (Capstan) | 9.52 cm/s | ||||||||
| Idler Drive (Reel) | |||||||||
| Multi Motor Mechanism | |||||||||
| Belt Drive (Azimuth Adjustment) | |||||||||
| Belt Drive (Mechanism) | |||||||||
