CR-7

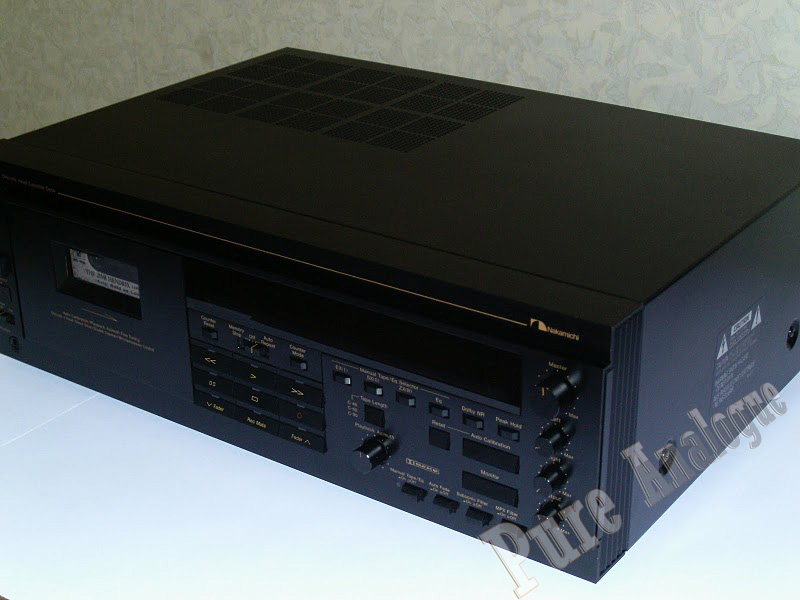

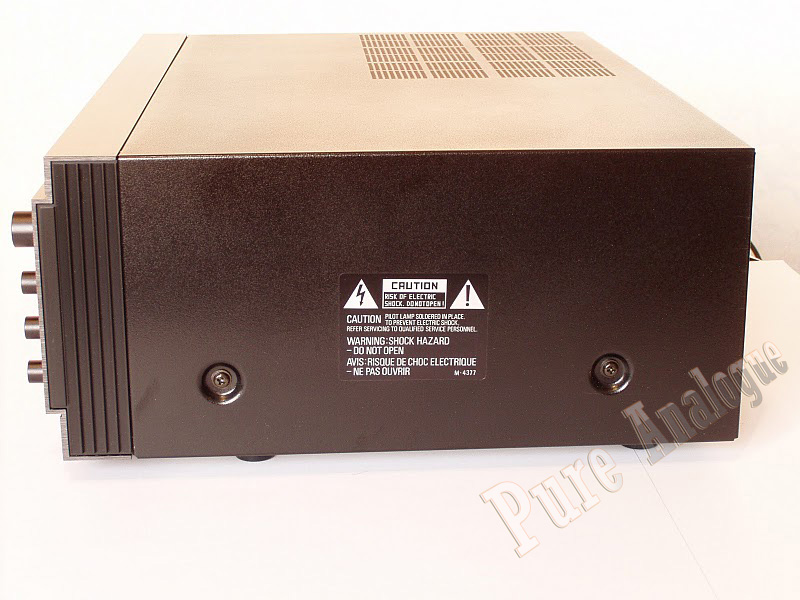

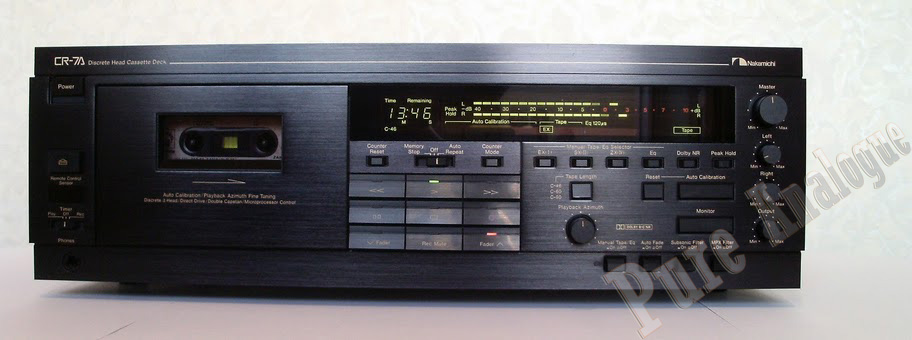

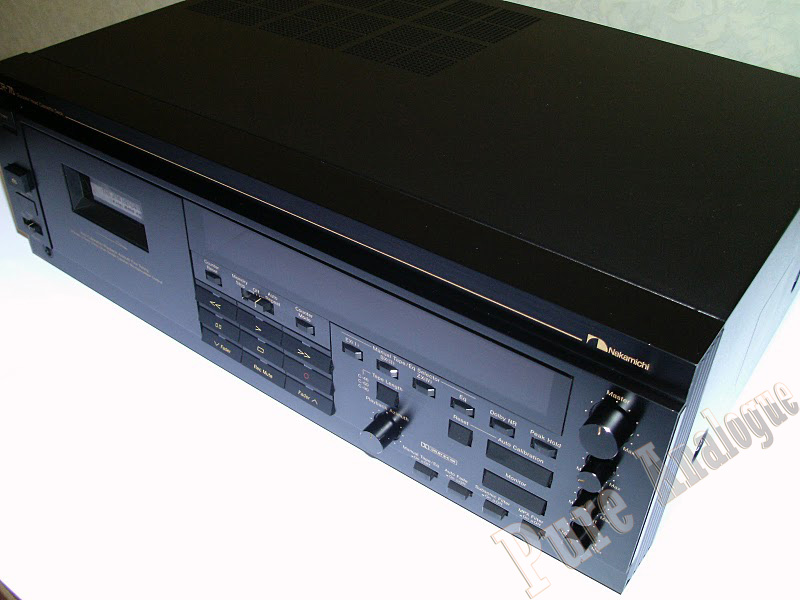

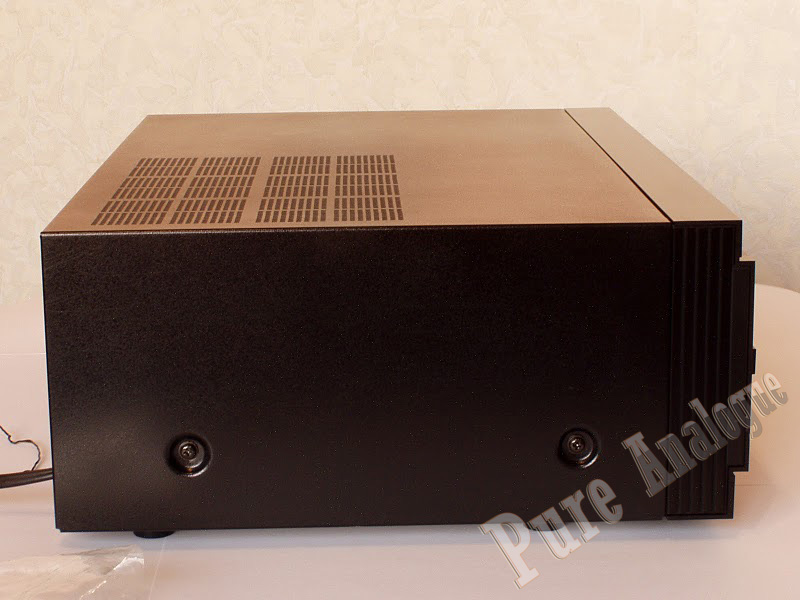

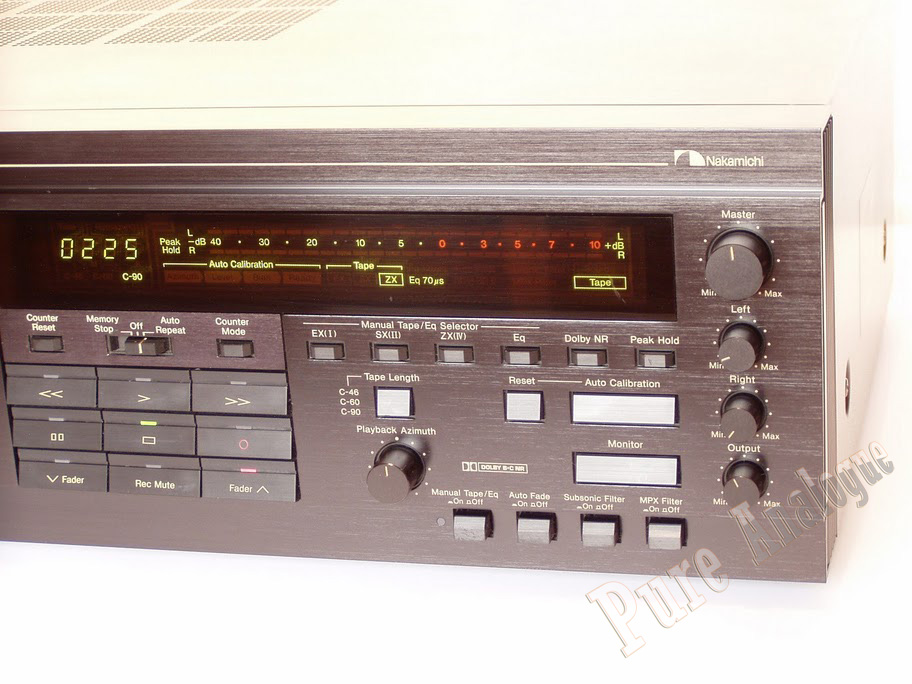

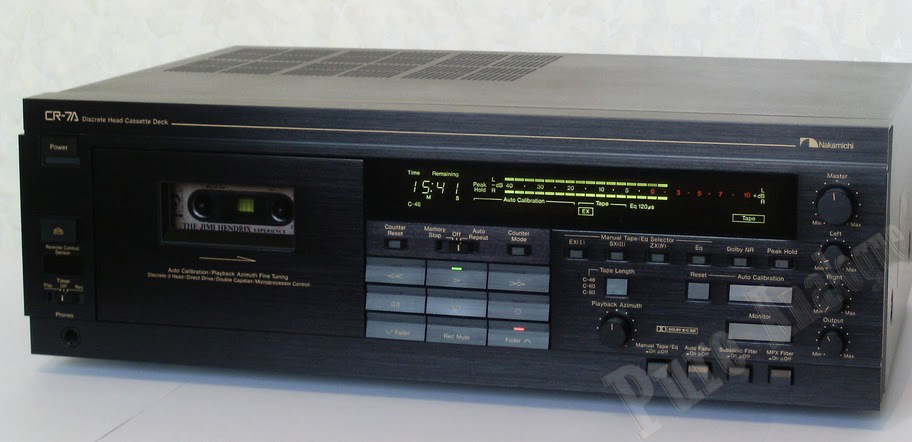

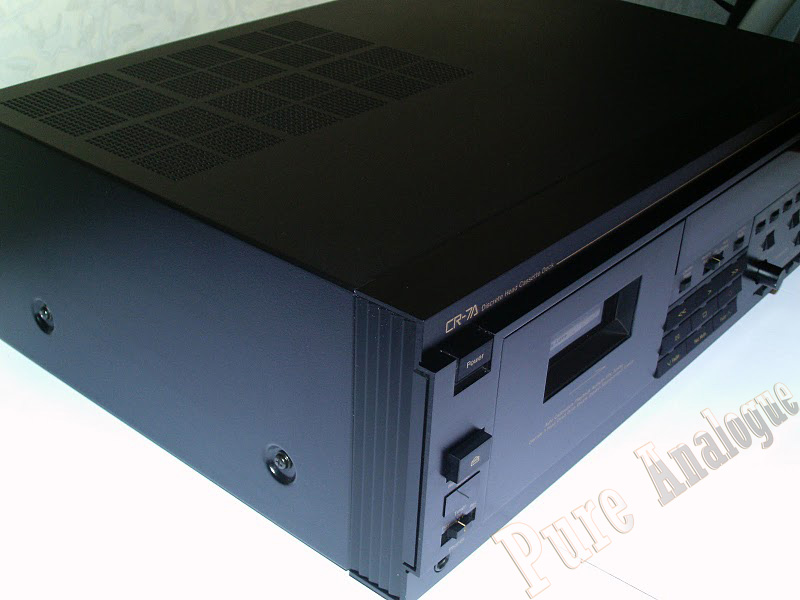

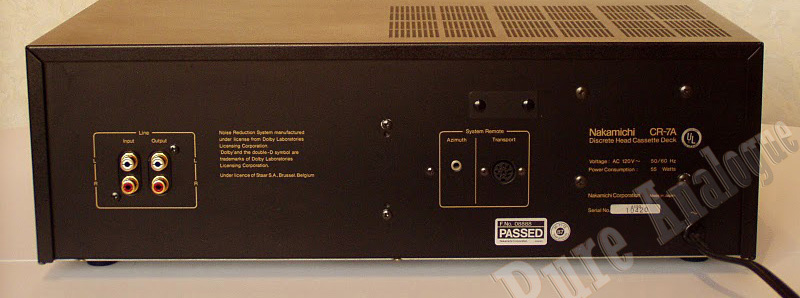

| Nakamichi CR-7 (CR-7A) | Photos by | Vladimir Ul'yanov | |||||||
 |
 |
 |
 |
||||||
| Service Manual | |
||||||||
| User Manual | |||||||||
| Release year | 1986-1993 | Average price | 1849$ | Catalogue | CR-7(A) Brochure |
||||
| Display | Head Configuration |  |
 |
||||||
| Digit Digital Counter | √ | 2 Head Design | |||||||
| Digital Peak-Reading Meters | √ | 3 Head Design |
√ |
||||||
| Mechanical Counter | Seperate Record and Playback Heads |
√ |
|||||||
| Analog Needle Meters | 4 Track / 2 Channel | √ |  |
 |
|||||
| Linear Tape Counter | |||||||||
| Tape | |||||||||
| Connectivity | Chrome Tape Capability | √ | |||||||
| Headphones | √ | Normal Tape Capability | √ |  |
|||||
| RCA Input/Output | √ | Metal Tape Capability | √ | ||||||
| Wired Remote Control | √ | Auto Tape Type Selection | |||||||
| Amp out | Manual Tape Type Selection | ||||||||
 |
|||||||||
| Noise Reduction | Calibration | ||||||||
| Dolby-B Noise Reduction | √ | 15kHz Test Tone | |||||||
| Dolby-C Noise Reduction | √ | 400Hz Test Tone | |||||||
| Dolby-S Noise Reduction | Auto Playback Azimuth Correction | √ | |||||||
| DBX Noise Reduction | Manual Bias Calibration | ||||||||
| Double Dolby NR Circuits | Manual Level Calibration | ||||||||
| MPX Filter | √ | Auto Bias Calibration | √ | ||||||
| Subsonic Filter | √ | Auto Level Calibration | √ | ||||||
| Dolby HX Pro | |||||||||
| Indicators | |||||||||
| Transport | Record Indicator | √ | |||||||
| Pressure Pad Lifter | √ | Illuminated Cassette Compartment | √ | ||||||
| Dual-Capstan Transport | √ | Chrome Tape | √ | ||||||
| Auto Reverse | Metal Tape | √ | |||||||
| Belt Drive (Capstan) | Normal Tape | √ | |||||||
| Slack-Tape Takeup | √ | Fader Down | √ | ||||||
| 2-Speed Cueing | Fader Up | √ | |||||||
| Mechanical Tape Loading | √ | ||||||||
| Direct Drive (Capstan) | √ | Speed | |||||||
| Auto Shutoff | √ | 4.76 cm/s | √ | ||||||
| Double Direct Drive (Capstan) | 9.52 cm/s | ||||||||
| Idler Drive (Reel) | |||||||||
| Multi Motor Mechanism | |||||||||
| Belt Drive (Azimuth Adjustment) | |||||||||
| Belt Drive (Mechanism) | |||||||||
