480Z

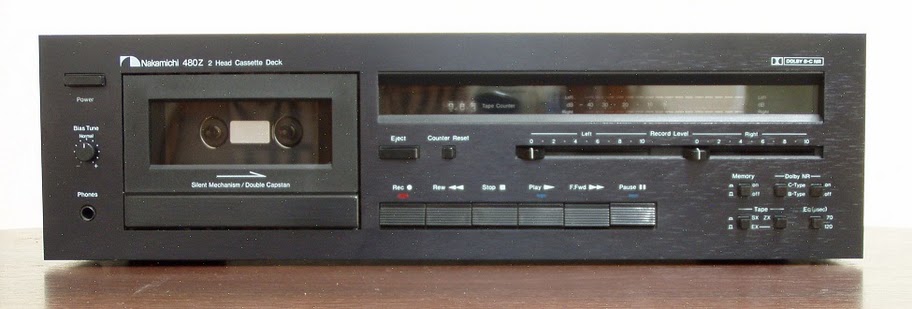

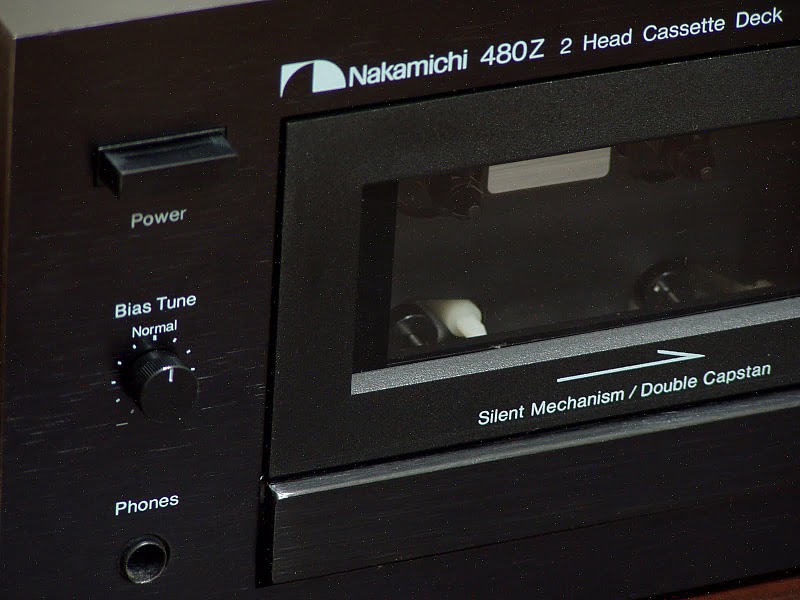

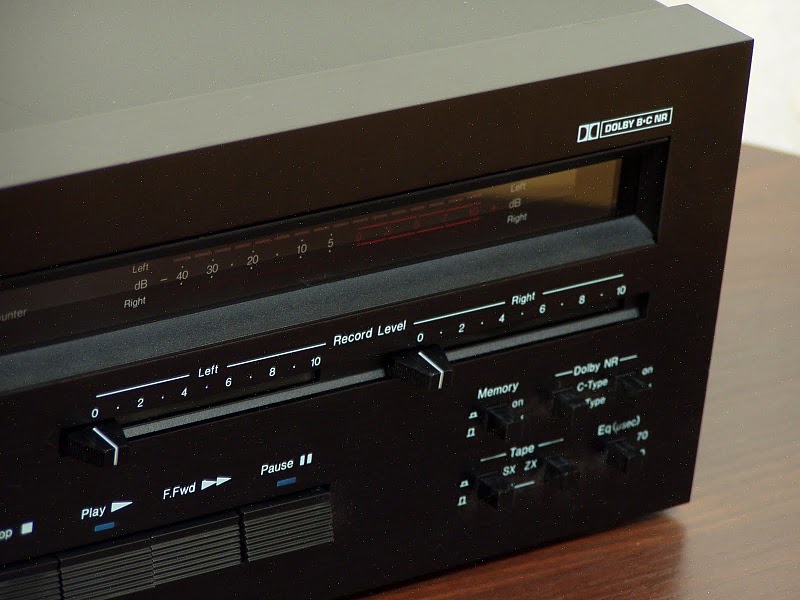

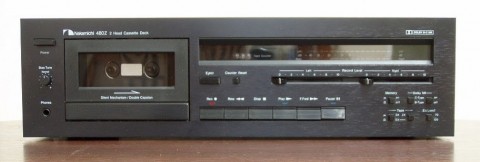

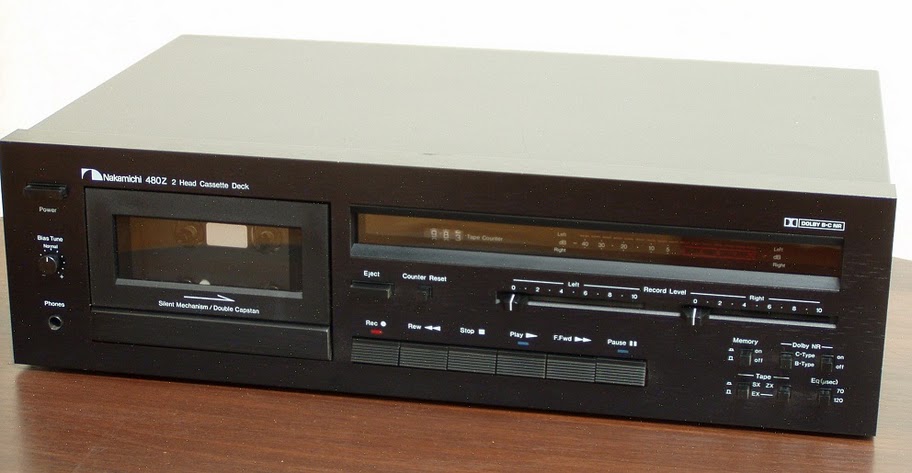

 Nakamichi 480Z   Photos by Vladimir Ul'yanov
Nakamichi_480Z_1   Nakamichi_480Z_2 Service Manual
  User Manual
  Catalogue



Release year 1979-1981     Average price  655$
Display Head Configuration

Nakamichi_480Z_4

Nakamichi_480Z_5
Track Indicator 2 Head Design √
Digital Peak-Reading Meters √ 3 Head Design
Mechanical Counter √   Seperate Record and Playback Heads
Analog Needle Meters     4 Track / 2 Channel

√

Nakamichi_480Z_6


Linear Tape Counter
    Tape
Connectivity Chrome Tape Capability √
Headphones √ Normal Tape Capability √

Nakamichi_480Z_7


RCA Input/Output √ Metal Tape Capability √
Wired Remote Control √ Auto Tape Type Selection
Amp out Manual Tape Type Selection √
       Nakamichi_480Z_3
Noise Reduction Calibration
Dolby-B Noise Reduction √ 15kHz Test Tone
Dolby-C Noise Reduction √ 400Hz Test Tone
Dolby-S Noise Reduction Auto Playback Azimuth Correction
DBX Noise Reduction Manual Bias Calibration  √

Double Dolby NR Circuits

  Manual Level Calibration
MPX Filter √ Auto Bias Calibration
Subsonic Filter Auto Level Calibration
Dolby HX Pro


      Indicators
Transport     Record Indicator √
Pressure Pad Lifter √   Illuminated Cassette Compartment
Dual-Capstan Transport √   Chrome Tape
Auto Reverse     Metal Tape
Belt Drive (Capstan) √   Normal Tape
Slack-Tape Takeup √   Fader Down
2-Speed Cueing   Fader Up
Mechanical Tape Loading √
    Speed
Auto Shutoff √   4.76 cm/s √
Double Direct Drive (Capstan)     9.52 cm/s
Idler Drive (Reel) √
Multi Motor Mechanism √
Belt Drive (Azimuth Adjustment)
Belt Drive (Mechanism)
