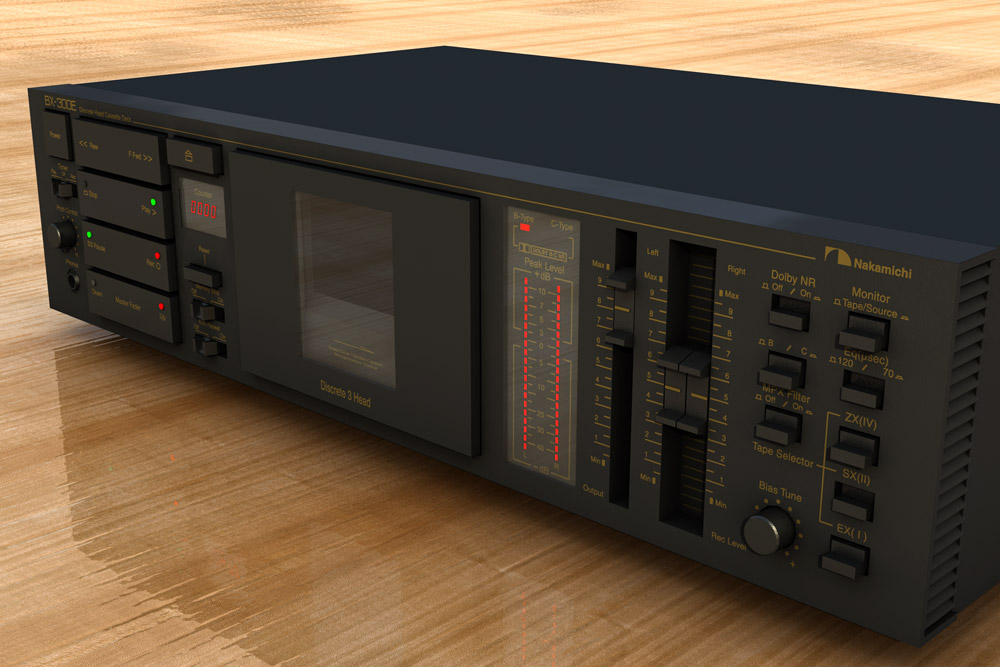

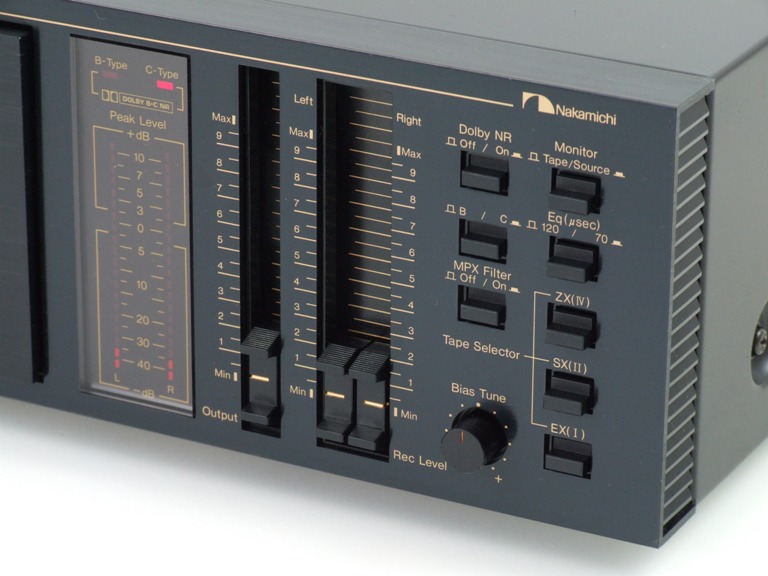

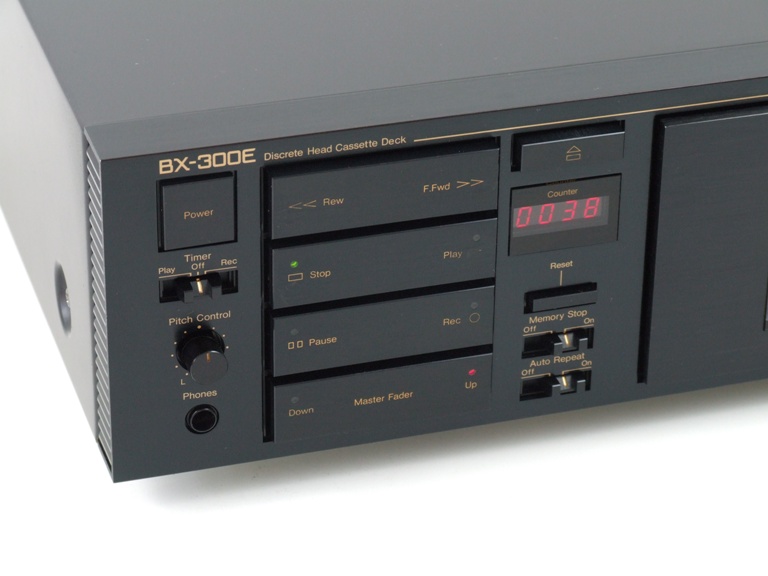

 Nakamichi BX-300 (BX-300E)

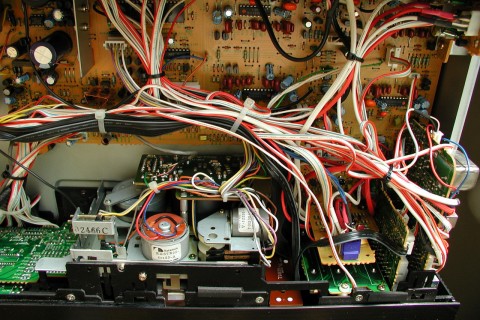

bx300_main   bx-300_pcb Nakamichi_BX-300E_Left Nakamichi_BX-300E_Right



  Service Manual  BX-300 SERVICE MANUAL
  User Manual  BX-300 USER MANUAL
Release year 1984-1987     Average price  750$
Display Head Configuration
Digit Digital Counter √ 2 Head Design
Digital Peak-Reading Meters √ 3 Head Design √
Mechanical Counter     Seperate Record and Playback Heads √
Analog Needle Meters     4 Track / 2 Channel
Linear Tape Counter
    Tape
Connectivity Chrome Tape Capability √
Headphones √ Normal Tape Capability √


RCA Input/Output √ Metal Tape Capability √
Wired Remote Control √ Auto Tape Type Selection
Amp out Manual Tape Type Selection √

Noise Reduction Calibration
Dolby-B Noise Reduction √ 15kHz Test Tone
Dolby-C Noise Reduction √ 400Hz Test Tone
Dolby-S Noise Reduction Auto Playback Azimuth Correction
DBX Noise Reduction Manual Bias Calibration √
Double Dolby NR Circuits Manual Level Calibration √
MPX Filter √ Auto Bias Calibration
Subsonic Filter Auto Level Calibration
Dolby HX Pro


      Indicators
Transport     Record Indicator √
Pressure Pad Lifter √   Illuminated Cassette Compartment
Dual-Capstan Transport √   Chrome Tape
Auto Reverse     Metal Tape
Direct Drive (Capstan) √   Normal Tape
Slack-Tape Takeup √   Fader Down √
2-Speed Cueing     Fader Up √
Mechanical Tape Loading √
    Speed
Auto Shutoff  √   4.76 cm/s √
Double Direct Drive (Capstan)     9.52 cm/s
Idler Drive (Reel) (Early models) √
Multi Motor Mechanism √
Belt Drive (Azimuth Adjustment)
Belt Drive (Mechanism)
