RS-B905

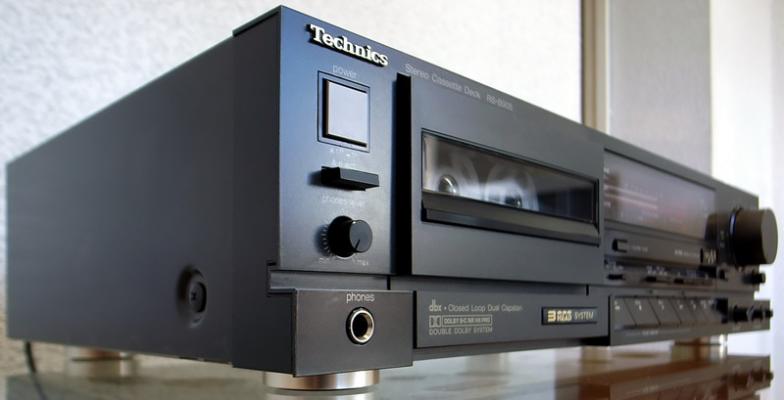

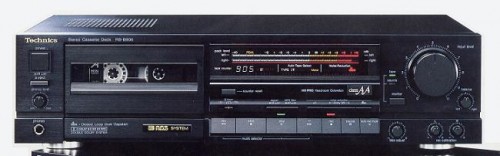

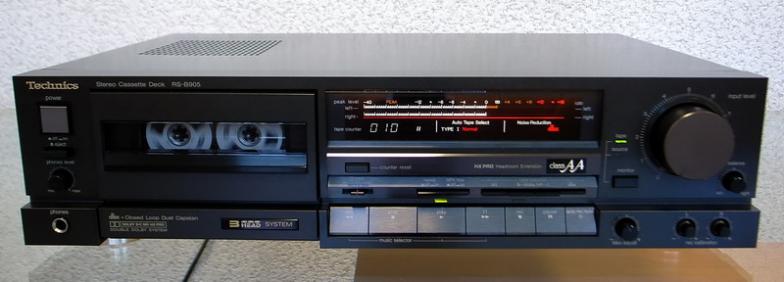

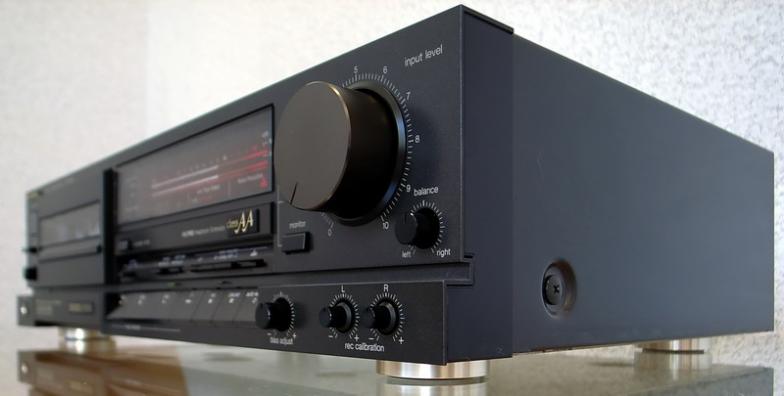

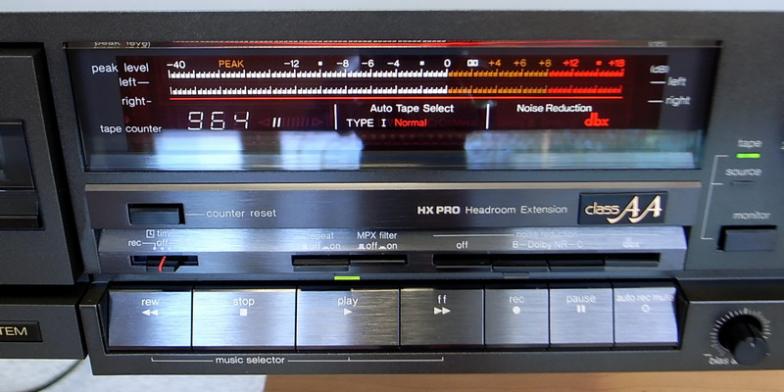

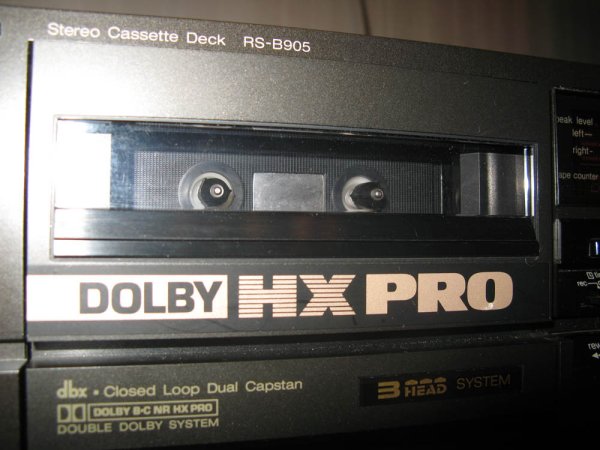

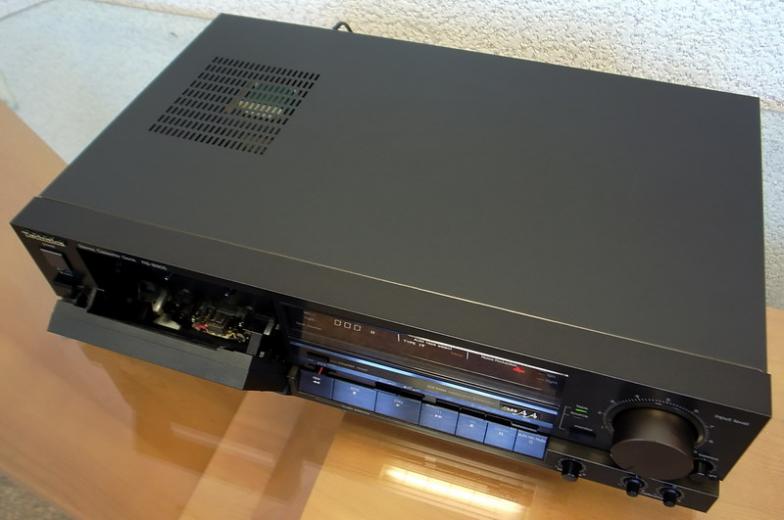

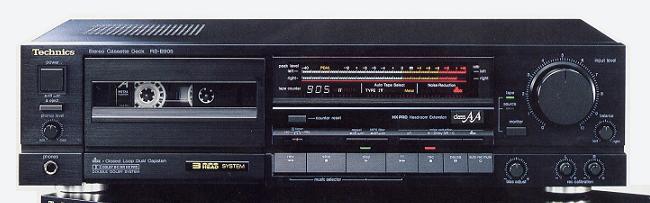

| Technics RS-B905 (Panasonic RS-B905) | photos from ilove-hifi | ||||||||
 |
 |
||||||||
| Service Manual | RS-B905 Service | ||||||||
| User Manual | |||||||||
| Display | Head Configuration |  |
 |
||||||
| Digit Digital Counter |
√ |
2 Head Design | |||||||
| Digital Peak-Reading Meters |
√ |
3 Head Design |
√ |
||||||
| Mechanical Counter | Seperate Record and Playback Heads | ||||||||
| Analog Needle Meters | 4 Track / 2 Channel |  |
 |
||||||
| Linear Tape Counter | |||||||||
| Tape | |||||||||
| Connectivity | Chrome Tape Capability |
√ |
|||||||
| Headphones |
√ |
Normal Tape Capability |
√ |
|
 |
||||
| RCA Input/Output |
√ |
Metal Tape Capability |
√ |
||||||
| Wired Remote Control | Auto Tape Type Selection |
√ |
|||||||
| Amp out | Manual Tape Type Selection | ||||||||
| Noise Reduction | Calibration | ||||||||
| Dolby-B Noise Reduction |
√ |
15kHz Test Tone | |||||||
| Dolby-C Noise Reduction |
√ |
400Hz Test Tone | |||||||
| Dolby-S Noise Reduction | Auto Playback Azimuth Correction | ||||||||
| DBX Noise Reduction |
√ |
Manual Bias Calibration |
√ |
||||||
| Double Dolby NR Circuits |
√ |
Manual Level Calibration |
√ |
||||||
| MPX Filter |
√ |
Auto Bias Calibration | |||||||
| Subsonic Filter | Auto Level Calibration | ||||||||
| Dolby HX Pro |
√ |
||||||||
| Indicators | |||||||||

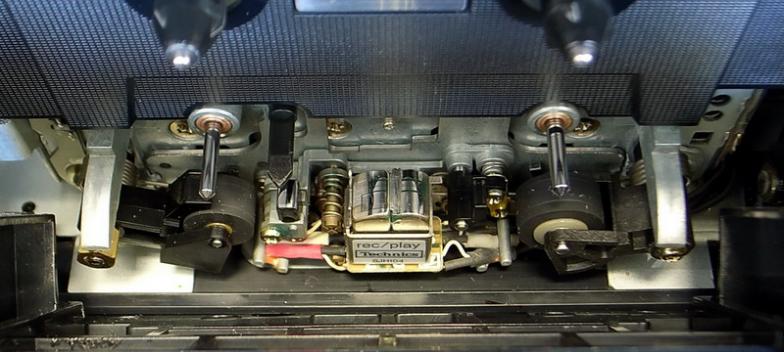

| Transport | Record Indicator |
√ |
|||||||
| Pressure Pad Lifter | Illuminated Cassette Compartment | ||||||||
| Dual-Capstan Transport | Chrome Tape |
√ |
|||||||
| Auto Reverse | Metal Tape |
√ |
|||||||
| Direct Drive (Capstan) | Normal Tape |
√ |
|||||||
| Slack-Tape Takeup | Fader Down | ||||||||
| 2-Speed Cueing | Fader Up | ||||||||
| Mechanical Tape | |||||||||
| Loading | Speed | ||||||||
| Auto Shutoff | 4.76 cm/s |
√ |
|||||||
| Double Direct Drive (Capstan) | 9.52 cm/s | ||||||||
| Idler Drive (Reel) | |||||||||
| Multi Motor Mechanism | |||||||||
| Belt Drive (Azimuth Adjustment) | |||||||||
| Belt Drive (Mechanism) | |||||||||
